| Place of Origin: | China |
|---|---|
| ब्रांड नाम: | CHEN LIFT |
| प्रमाणन: | CE ISO9001:2008 IPAF member |
| Model Number: | SEP2-4.5 |
| Minimum Order Quantity: | 1 set |
| मूल्य: | विनिमय योग्य |
| Packaging Details: | PVC Film Wrapped in Pallets or in wooden Case |
| Delivery Time: | 30 days after order confirmed |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 3000 Units Per Year |
| Max. Platform Height: | 4.5m | Max. Machine Height: | 6.1m |
|---|---|---|---|
| Loading Capacity: | 200kg | Platform Size: | 600*640mm |
| Lifting Motor: | 12V/1.6kw | Overall Weight: | 420kg |
| प्रमुखता देना: | warehouse order picker,vertical order picker |
||

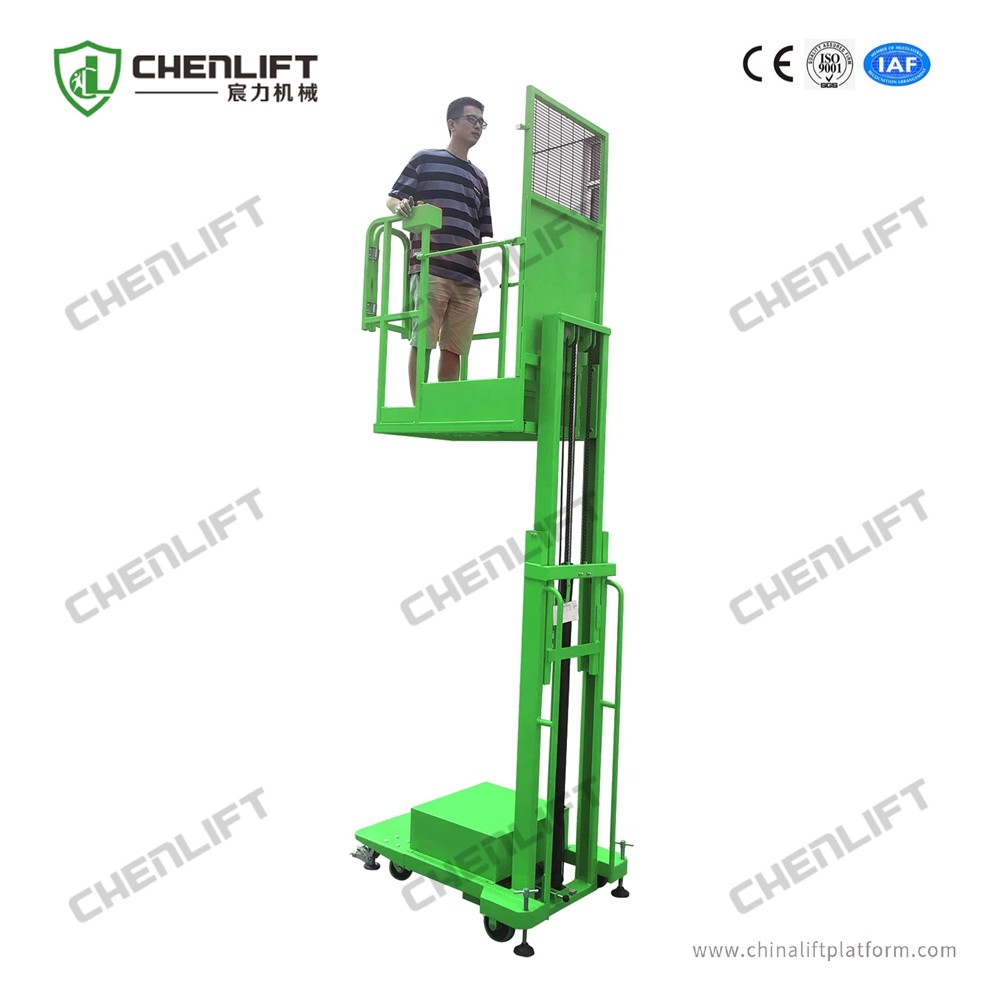

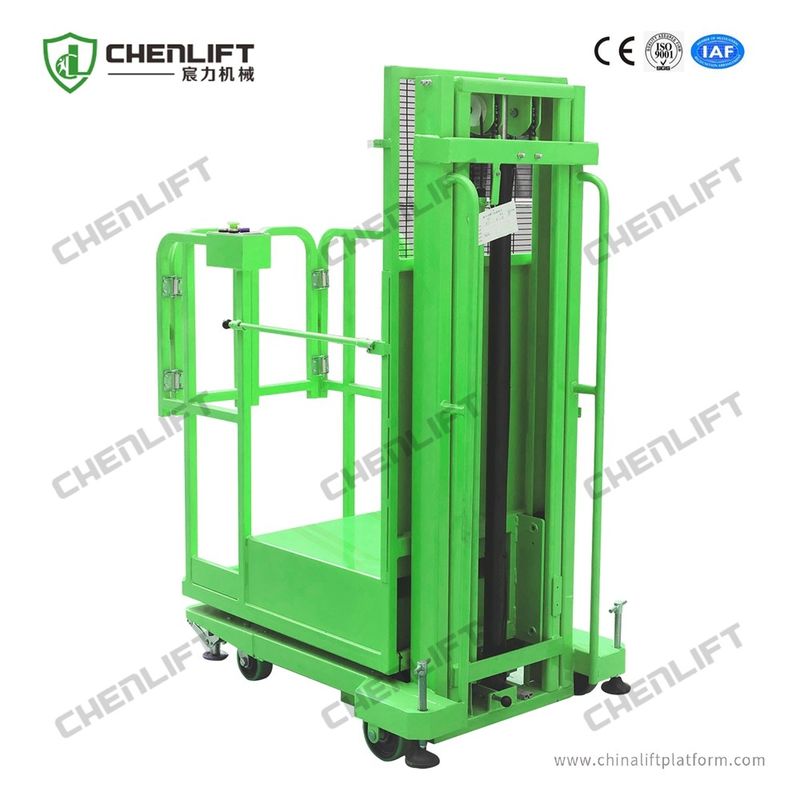

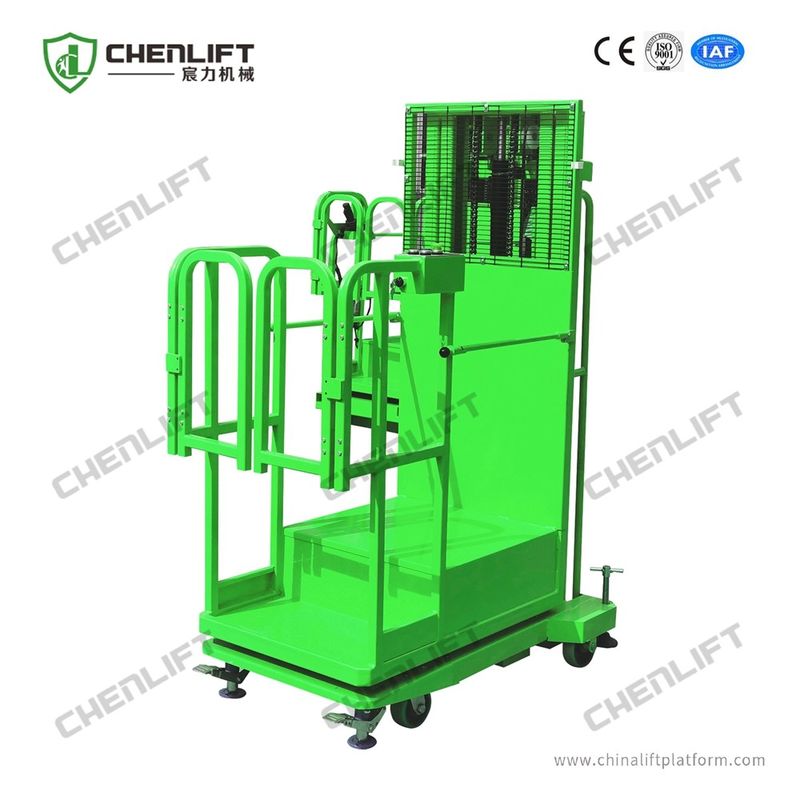

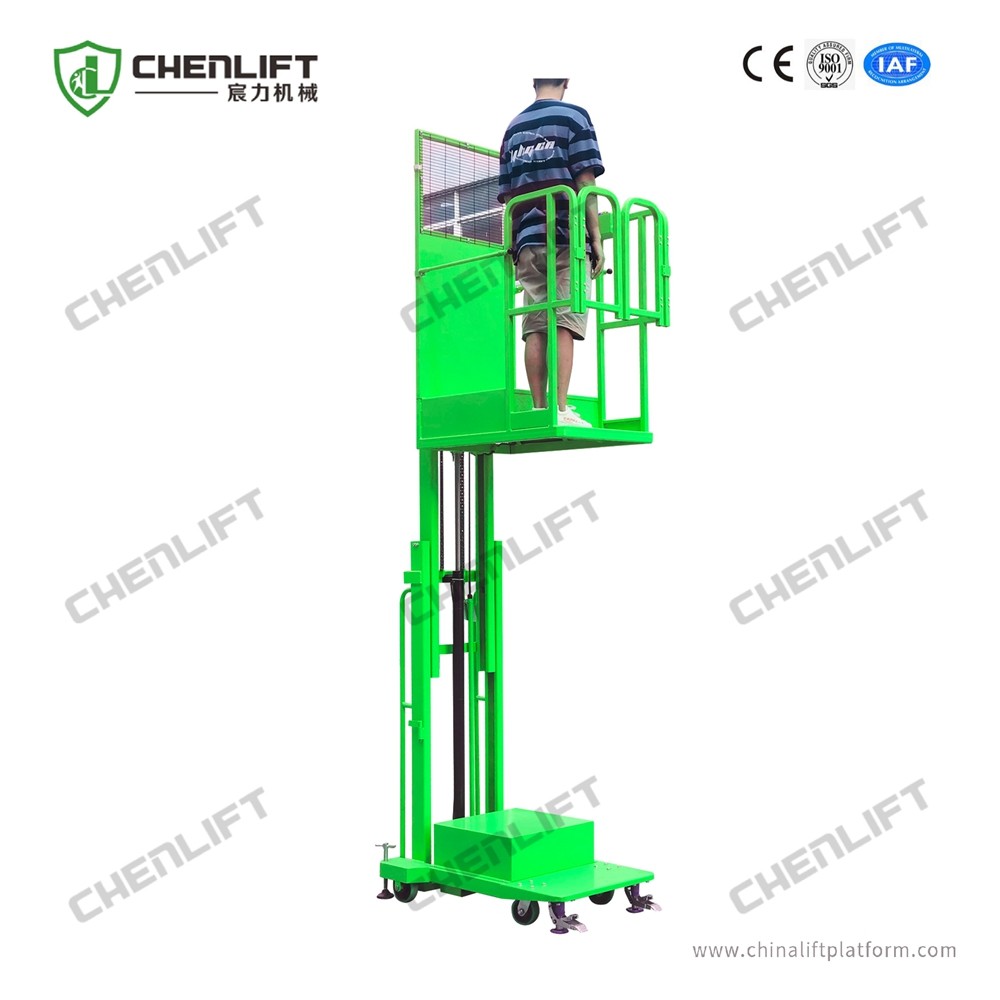

4.5m Platform Height Semi-Automatic Aerial Order Picker with 200kg Load Capacity
Product Description
Semi-electric aerial order picker is with high safety, moving easily and convenient working. This product is broadly accepted by our clients due to their superior finish, durability, high load bearing capacity and longer service life without any hassles.
Application
Semi-electric Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
Major Parameter of Semi-Electric Aerial Order Picker
| Model | SEP2-2.7 | SEP2-3.3 | SEP2-4.0 | SEP2-4.5 |
| Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg |
| Max. Platform Height | 2.72m | 3.30m | 4.00m | 4.50m |
| Max. Machine Height | 4.02m | 4.90m | 5.40m | 6.10m |
| Platform Size | 600*640mm | 600*640mm | 600*640mm | 600*640mm |
| Stowed Length | 1.30m | 1.30m | 1.32m | 1.32m |
| Stowed Width | 0.85m | 0.85m | 0.85m | 0.85m |
| Stowed Height | 1.76m | 2.04m | 1.83m | 2.00m |
| Ground Clearance | 30mm | 30mm | 30mm | 30mm |
| Lift Motor | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw | 12V/1.6Kw |
| Battery | 12V/120Ah | 12V/120Ah | 12V/120Ah | 12V/120Ah |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A |
| Overall Weight | 270Kg | 320Kg | 380Kg | 420Kg |
Product Details
Operation of Picker
Company Introduction
As a subsidiary company of Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Certificates
Factory Equipment
Customer Visiting
Other Related Products
Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.
