| Place of Origin: | China |
|---|---|
| ब्रांड नाम: | Xunte |
| प्रमाणन: | CE, ISO001:2001 |
| Model Number: | DCQY10-0.6 |
| Minimum Order Quantity: | 1 SET |
| मूल्य: | विनिमय योग्य |
| Packaging Details: | NUDE |
| Delivery Time: | 20 DAYS |
| Supply Ability: | 50 SETS PER MONTH |
| Loading Capacity: | 10000kg | Overall Length: | 11200mm |
|---|---|---|---|
| Slope Length: | 7500mm | Platform Length: | 2400mm |
| Lip Length: | 300mm | Overall Width: | 2100mm |
| Net Width: | 2000mm | Adjustable Working Height: | 1200-1800mm |
| Weight: | 2980kg | ||
| प्रमुखता देना: | mobile yard ramp,mobile dock leveler |
||

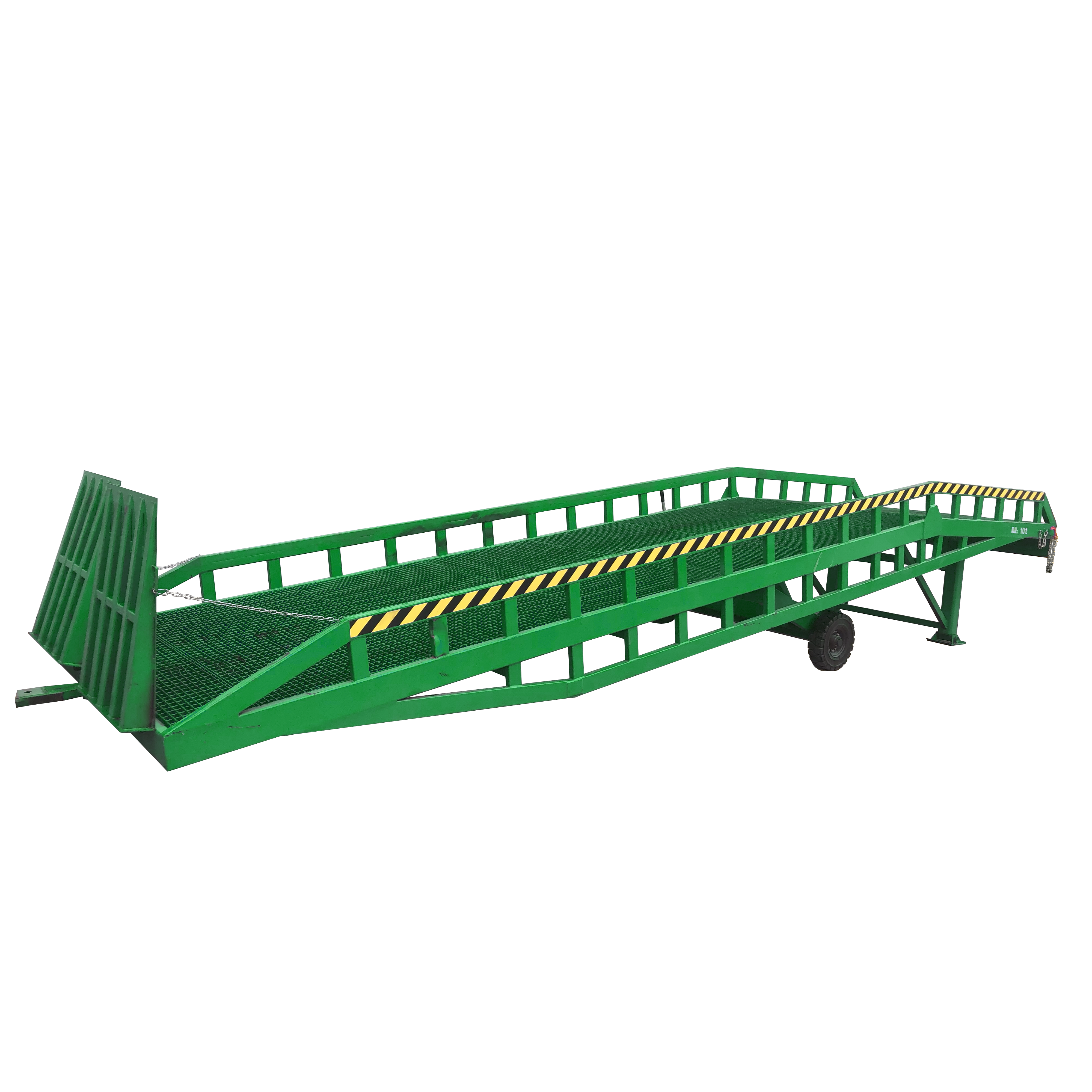

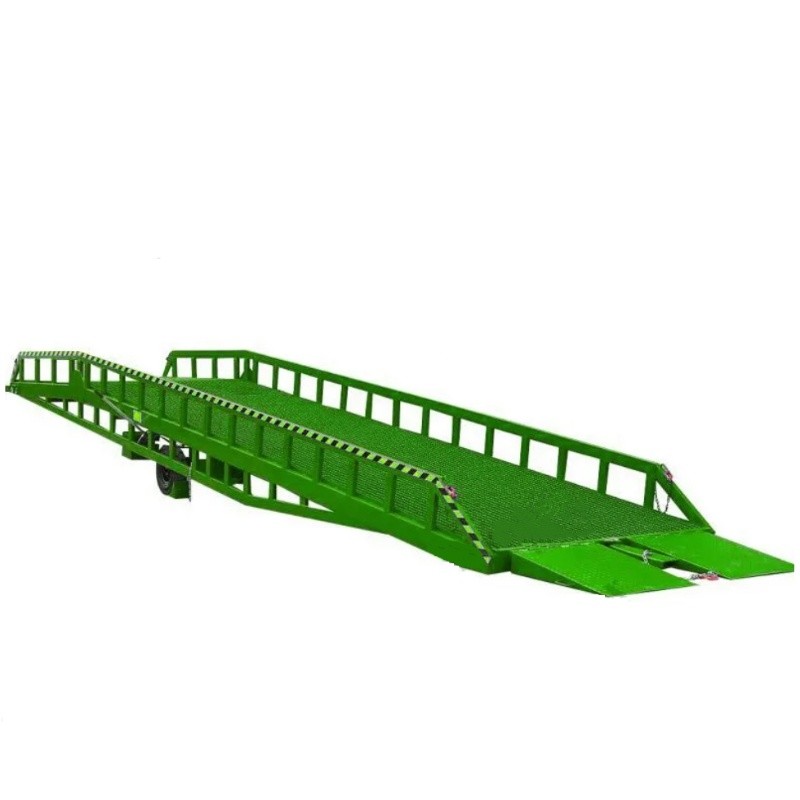

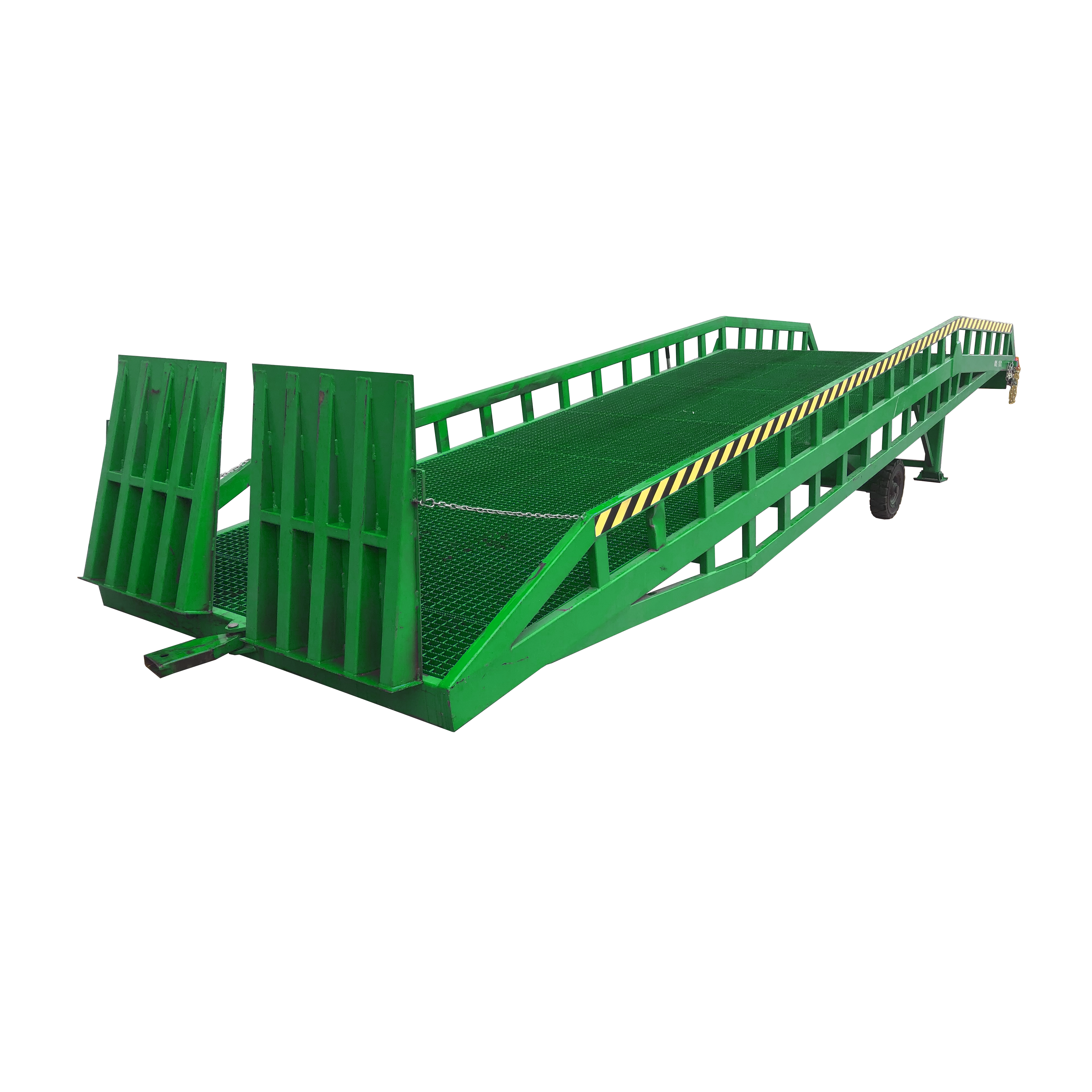

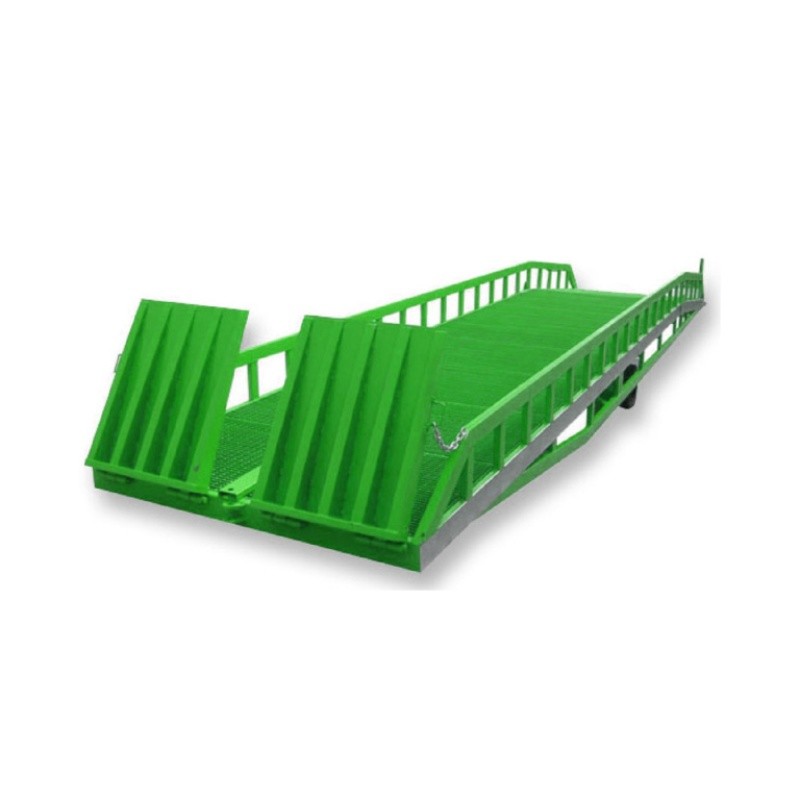

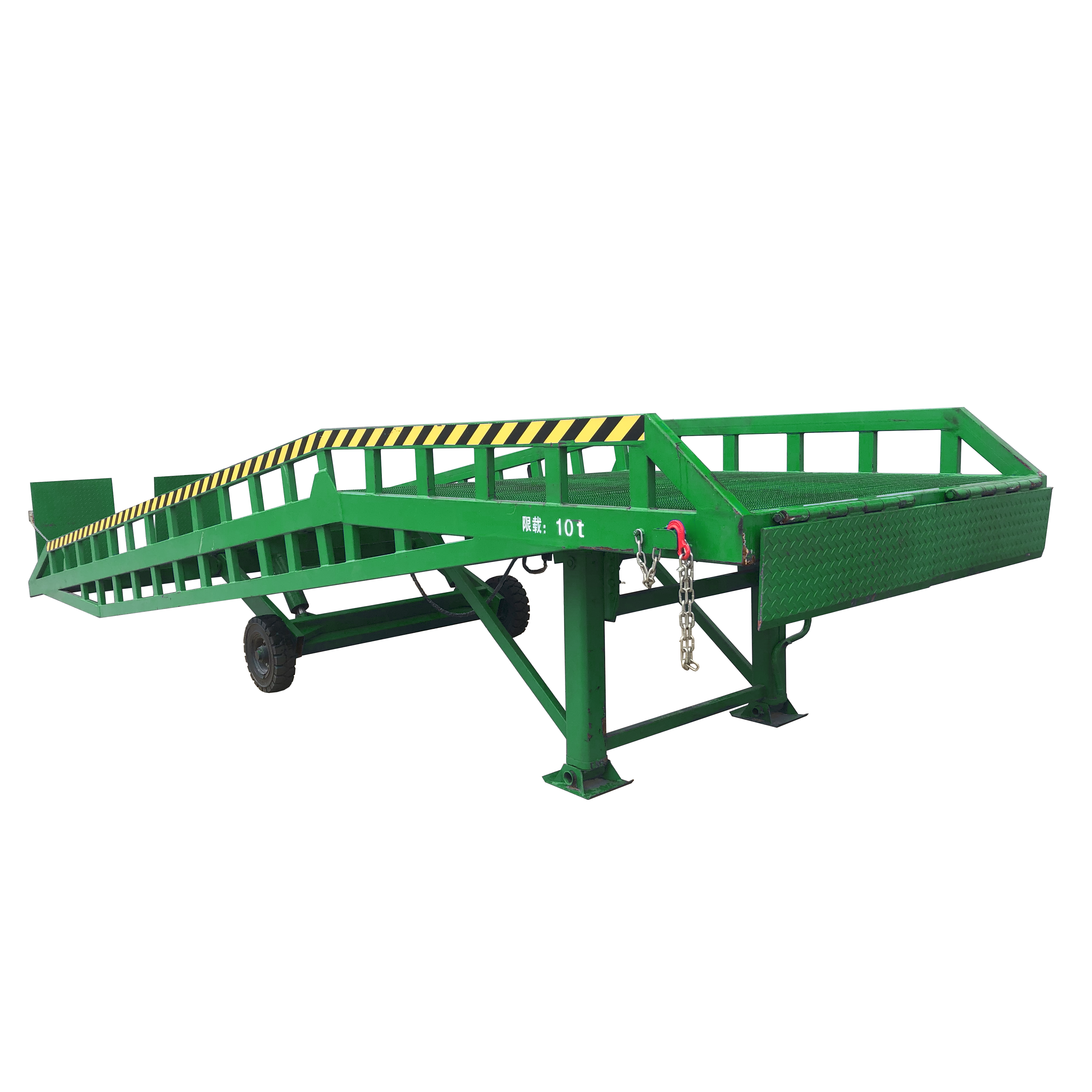

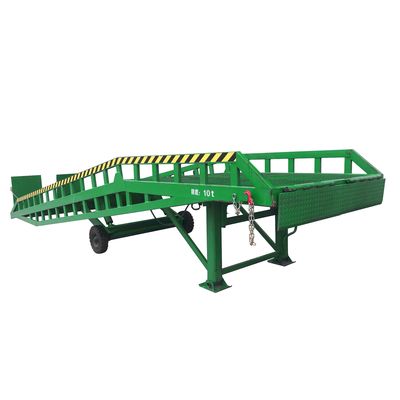

Adjustable Container Loading Mobile Dock Ramp With Outrigger, Manual Operating and Blue Color
Quick Detail:
| Name | Mobile Dock Ramp | Brand Name | Xunte |
| Loading Capacity | 10000Kg | Color | Blue or optional |
| Adjustable Working Height | 1200mm-1800mm | Pump | Manual/Electrical/Both |
| Platform Length | 2400mm | Power Supply | Manual/AC |
| Bridge Width | 2100mm |
Description:
Mobile Dcok Ramp is a loading machine to provide an access for the forklift to do loading and unloading work in the container. The adjustable lifting range of this machine is 12000-1800mm which is suitable for most truck using. And there is safety locking chain in the dock ramp to connect the machine to the truck and prevent moving when loading and unloading cargoes.
Model: DCQY10-0.6
Loading Capacity 10000Kg
Overall Length 11200mm
Overall Width 2100mm
Clear Width 2000mm
Labial Plate Length 300mm
Labial Plate Width 2000mm
Flap Length 1000mm
Adjustable Working Height 1200-1800mm
Platform Length 2400mm
Slope Length 7500mm
With Outriggers
Safety Features:
1. Safety Locking Chain
2. Brake Pads
3. Fence on the platform
Main Features:
1. pick-up slot
2. Manual Pressing Hydraulic Lifting System
3. Outriggers
4. Labial Plate
5. Trailer Plate
Optional Features:
1. Electrical Operation Lifting System
